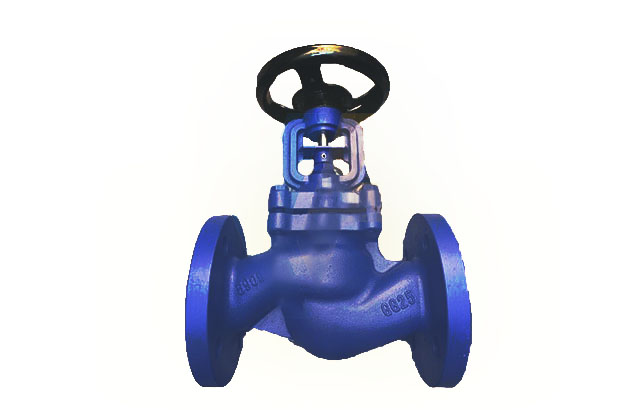

Bellow Globe Valve

Model:: -
Size:: DN15-DN600
Pressure:: PN10-PN420, Class 150- Class 2500
Body Materials:: Cast Iron, Ductile Iron, WCB , Stainless Steel, Bronze/Brass
Applicable Medium:: Water, oil, steam and other non-corrosive media.; Send us Email

Introduction Features Technical Parameters Technical Standard Related Products Inquiry

Product Introduction

Bellows globe valves, also known as bellows seal globe valves, are automatically welded to form a metal barrier between the fluid medium and the atmosphere to ensure stem leakage is zero. The bellows globe valve is constructed with bellows inside. The lower end of the stainless steel bellows is welded to the stem to prevent the stem from being corroded by process fluid. The other end is placed between the body and the bonnet to form a static seal. The double seal design also prevents leakage if the bellows fail the stem packing. The bellows are welded to the stem to maintain stable operating performance and prevent stem vibration due to plug vibration. Most suitable for steam, inflammable, explosive, heat conduction oil, high purity, toxic and other medium pipeline.

Product Features

1. The bellows seal the globe valve, the key component of which is the metal bellows. The lower end and the valve stem assembly are automatically hobbing welded, and the upper end is automatically hobbing welding with the connecting plate to form a metal barrier between the fluid medium and the atmosphere to ensure zero leakage of the valve stem
2. Valve plate adopts conical design, sealing surface and medium form a flow line, better sealing performance, longer service life
3. Double seal design, avoid leakage, in line with international seal standards
4. The valve cover is equipped with a grease joint, which can directly lubricate the valve stem, nut and shaft sleeve.

Technical Parameters

DN	PN16					Weight(KG)	PN25					Weight(KG)	PN40					Weight(KG)
DN	L	D	D1	N-φ	H	Weight(KG)	L	D	D1	N-φ	H	Weight(KG)	L	D	D1	N-φ	H	Weight(KG)
15	130	95	65	4×14	190	4.5	130	95	65	4×14	190	4.5	130	95	65	4×14	190	5
20	150	105	75	4×14	190	5.0	150	105	75	4×14	190	5.0	150	105	75	4×14	190	5.5
25	160	115	85	4×14	195	5.8	160	115	85	4×14	195	5.8	160	115	85	4×14	195	6.5
32	180	140	100	4×18	210	7.5	180	140	100	4×18	210	7.5	180	140	100	4×18	210	8.5
40	200	150	110	4×18	220	10	200	150	110	4×18	220	10	200	150	110	4×18	220	11
50	230	165	125	4×18	230	13	230	165	125	4×18	230	13	230	165	125	4×18	230	14.5
65	290	185	145	8×18	255	18.5	290	185	145	8×18	255	18.5	290	185	145	8×18	255	20
80	310	200	160	8×18	270	23	310	200	160	8×18	270	23	310	200	160	8×18	270	24
100	350	220	180	8×18	360	38.5	350	235	190	8×22	360	40	350	235	190	8×22	360	42
125	400	250	210	8×18	380	53	400	270	220	8×26	380	55	400	270	220	8×26	380	58
150	480	285	240	8×22	415	81	480	300	250	8×26	415	88	480	300	250	8×26	415	95
200	600	340	295	12×22	530	144	600	360	310	12×26	530	155	600	375	320	12×30	530	165
250	730	405	355	12×26	665	230	730	425	370	12×30	665	250	730	450	385	12×33	665	295
300	850	460	410	12×26	720	420	850	485	430	16×30	720	460	850	515	450	16×33	720	510
350	980	520	470	16×26	1020	610	980	555	490	16×33	1020	680	980	580	510	16×36	1020	750
400	1100	580	525	16×30	1180	790	1100	670	550	16×36	1180	860	1100	660	585	16×39	1180	920

Technical Standard

1.Design and manufacture according to DIN EN13709-2003.
2.Face to face according to DIN EN588-1:1995.
3.Flange drilling according to DIN EN1092-1:2002.
4.Pressure test according to DIN EN12266:2003.
